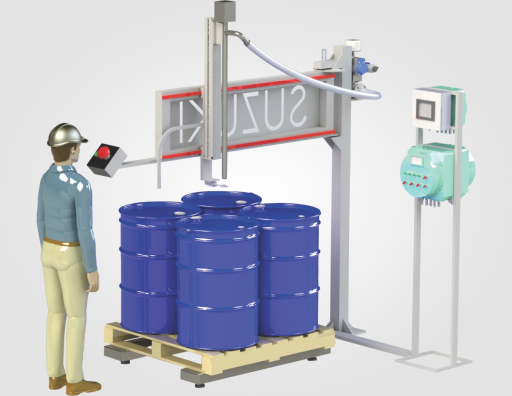

Drum Filling Station

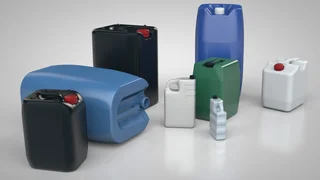

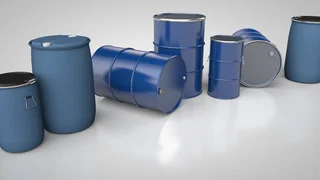

Which containers do you use?
Depending on the container you use, we have the right machine for you.
System
"SUZUKI" designed the drum filling stations by selecting the global instrumentation having the best performance edge in the industries. Filling applications are Designed as per Client specifications. Our primary objective during any design of equipment is Human safety, performance efficiency and ease of maintenance.
View Solutions
Filling System Features
Engineered for precision, built for reliability. Our filling systems deliver unmatched performance across all industrial applications.
Easy Human Interface
Touch functionality with intuitive operations for enhanced user experience.
Multi-Type Filling Design
Top filling (Non Foaming), Micro Dip (Partial Foaming), Semi Dip (Semi Foaming), and Full Dip filling (Partial Foaming) capabilities for all applications.
300+ Step Control
Advanced system with over 300 step filling control actions for precision.
Adjustable Height
Height adjustment per drum selection for versatile container handling.
Media Flow Selection
Choose between Electrical Motor, AOD, or Gravity filling with precise control.
Premium Materials
Wetted parts in SS304, SS316, SS316L with PTFE seals for durability.
Intelligent Controller Features
- Intelligent Cortex A8 800Mhz CPU module with inbuilt 512 MB Ram.
- Touch Functionality with 65,536 colors.
- One touch Data transfer to selectable CSV, XLS format.
- Inbuilt 24 Bit Sharp ADC module with auto Linearity correction and fast response (50 ms)
- Programmable Recipe’s With software data recording features as per user defined.
- Inbuilt Self Diagnostic features, Alarm’s & Log’s recording.
OPTIONAL
- Atex Approved HMI module's.
- Analog Valve controls for gravimetric filling.

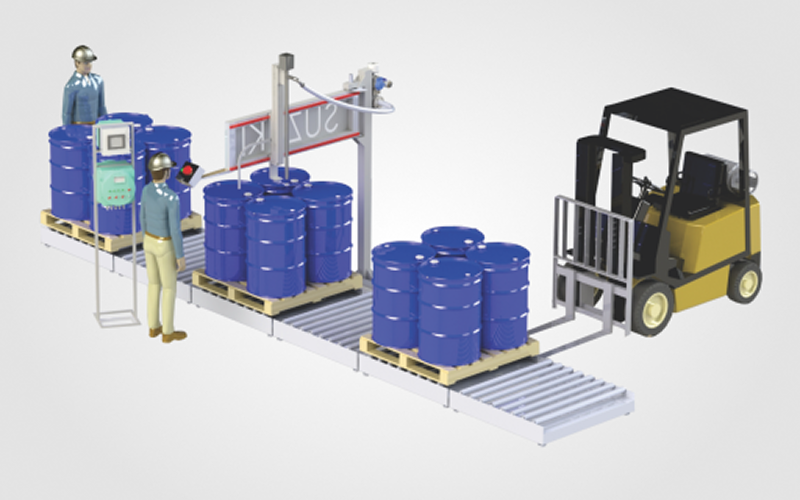

- Gravity Conveyors, Motorized Conveyors, Nitrogen blanketing.
- IP68, Perylene coated, AtexApproved loadcell's.
- Earth leakage interrupt.
- SS 316, SS 316L, Poly propylene, Teflon designed nozzle's.
- Equipment Body Cover SS-304, SS-316.
NOTE: System can be customized as per the client process requirement.
| Selection Table | Range | Capacity |
|---|---|---|
| Drum fillin selection | ||

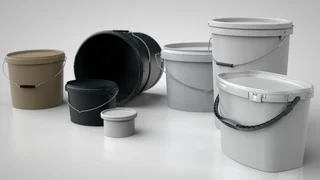

| Pail filling | Range | 0.5 Kg to 60 Kg |

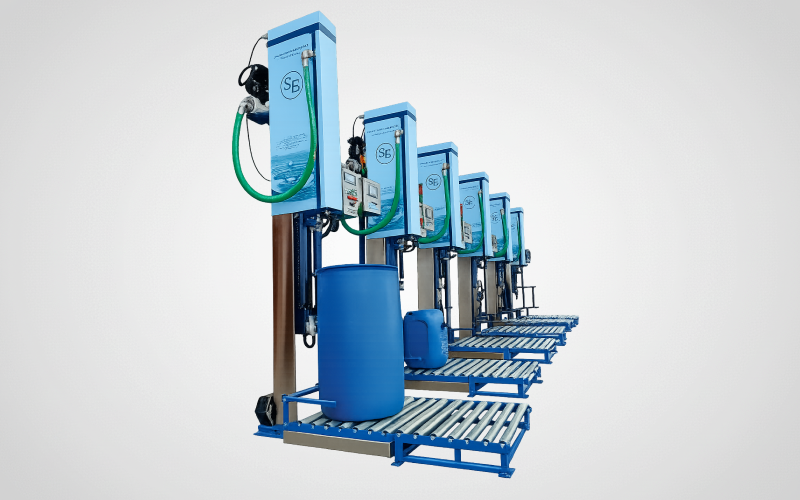

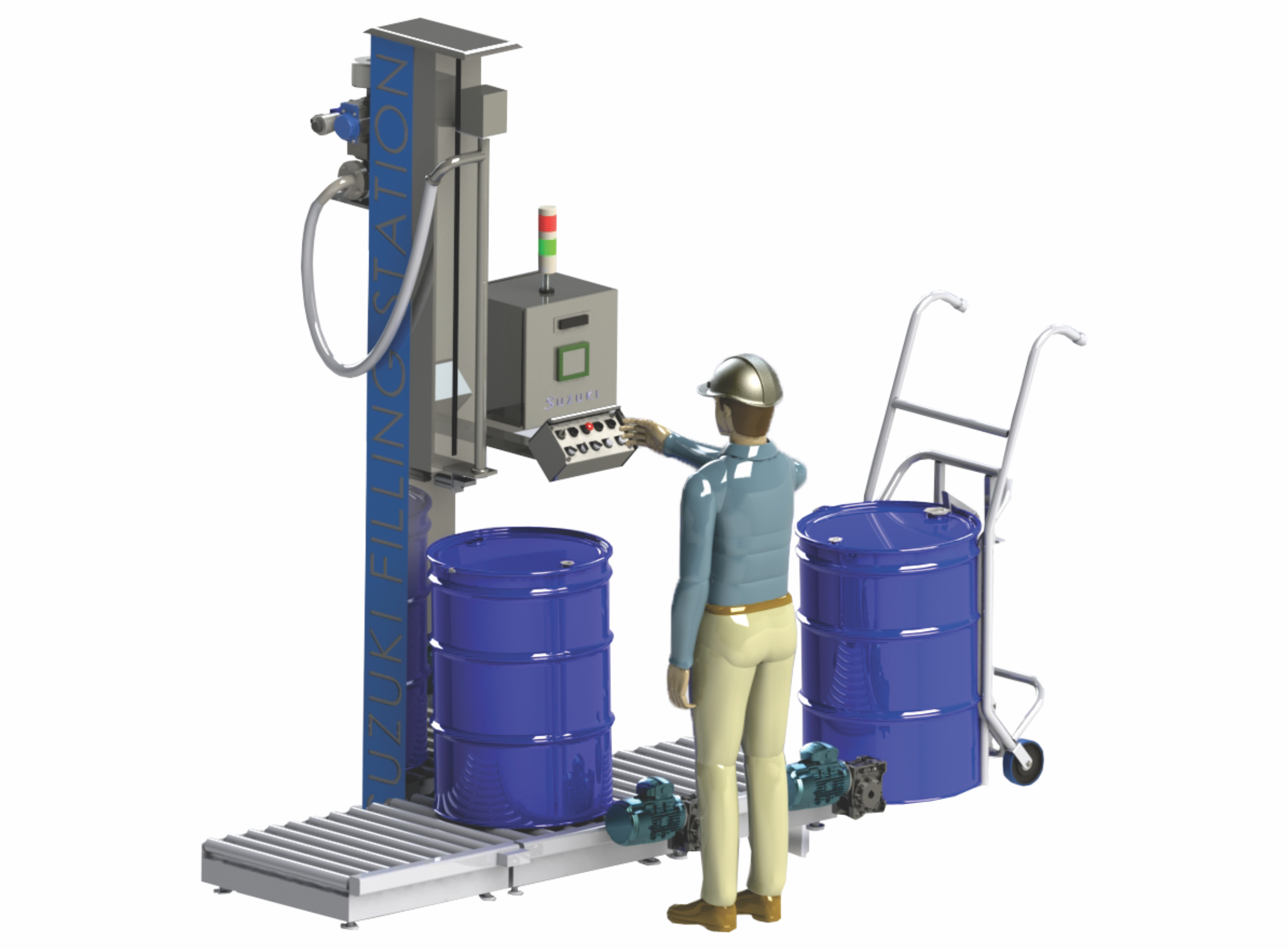

| Single barrel filling station | Range | 30 Kg to 300 Kg |

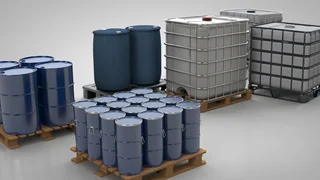

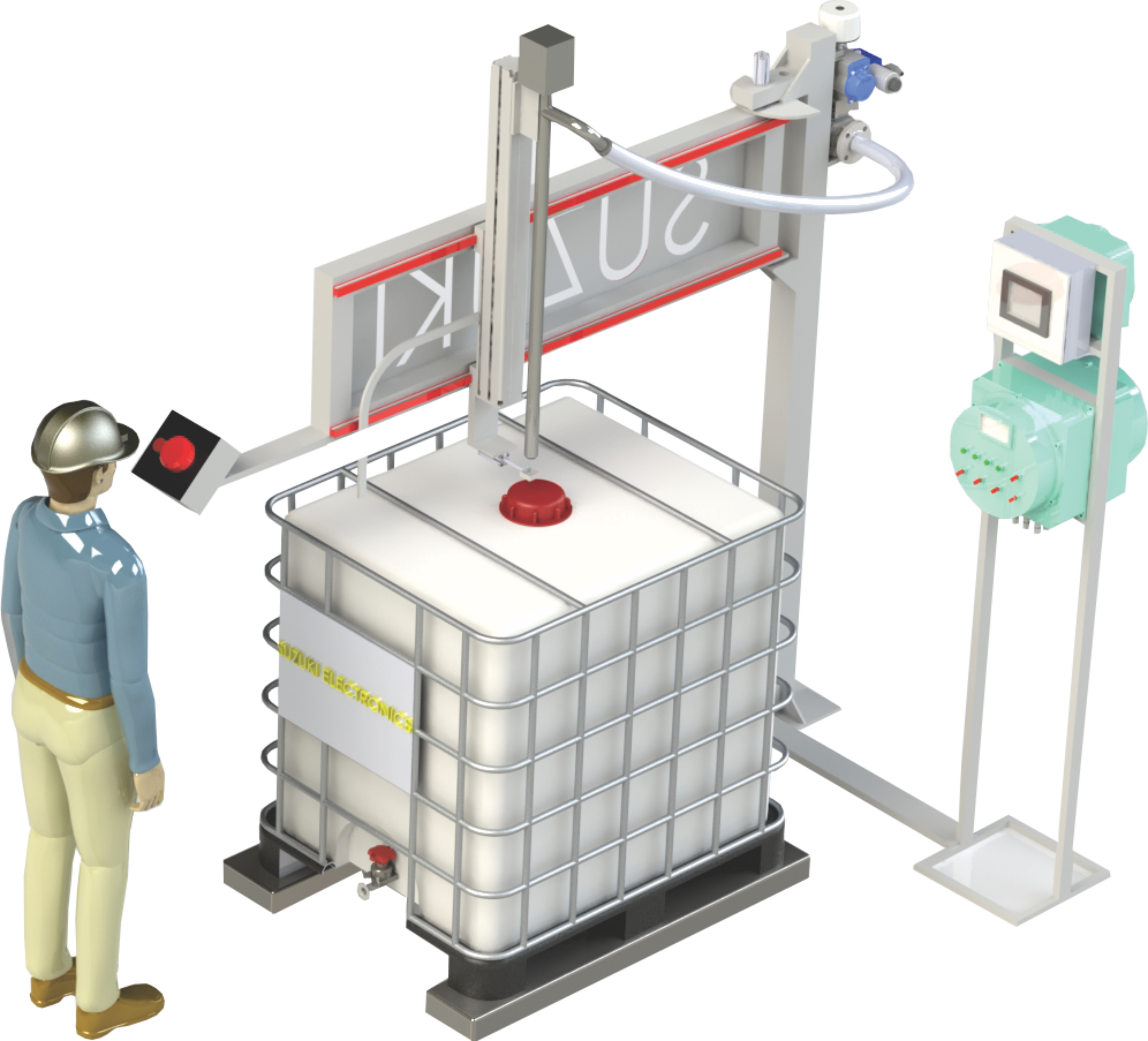

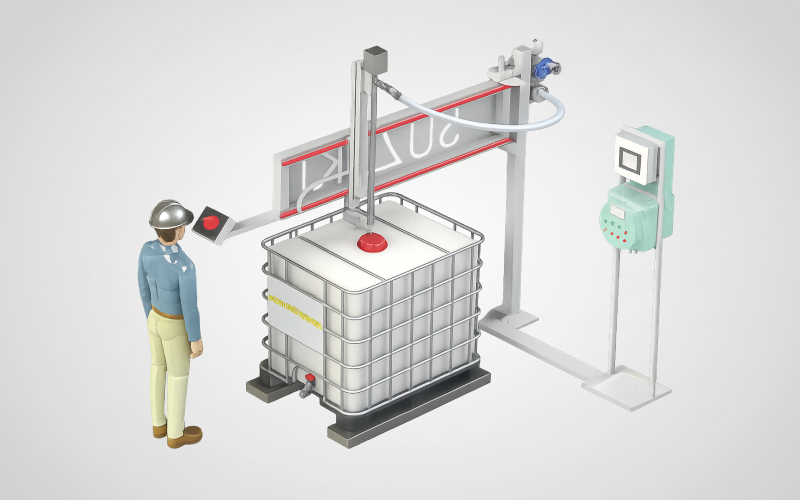

| Palletizer / IBC filling | Range | 800 Kg to 2000 Kg |
